ISP1507 series
Bluetooth 5.0 Modules with Built-in Antenna

High Performance Multiprotocol Module Suitable for BLE / ANT+ / NFC with MCU and Antenna

This miniature BLE module by InsightSIP is one of our best selling devices, used in a diverse range of applications from wearables to industrial solutions.

8.0 x 8.0 x 1.0 mm

Module Description

The ISP1507 was our first device based on Nordic Semiconductor’s nRF52 third generation radio processors. It has a large memory capacity and powerful processor, allowing it to be deployed in wide range of applications. It can form the core of a complete application, or be connected to provide radio connectivity to a more complex system.

As it is one of our best selling devices, it will remain in production for many years to come; however for new designs, we would suggest the ISP2454 series devices using the latest generation of technology

Overview

Single mode Bluetooth 5 stack
ANT+ stack available
2.4GHz low energy RF transceiver from nRF52 Nordic Semiconductor family
32-bit ARM Cortex M4 CPU
Many analog and digital IOs including ADC, SPI, UART, PDM, I2C
Fully integrated RF matching and Antenna

Integrated Radio 32 MHz & Synchro 32kHZ crystal clocks
DC/DC converter with complete loading circuit
Pin compatibility with full iSP15 / iSP18 / iSP19 series

Module Variants

This miniature BLE module by InsightSIP is deployed to support sophisticate or baseline applications requiring Bluetooth 5 without Long Range connectivity. At 8 x 8 x 1 mm, ISP1507 series provide huge computing capability coupled with best-in-class battery life, with power consumption around 20-50% lower than previous generations of technology, making this Bluetooth Low Energy / BLE module a ready to use solution for most of IOT (Internet of Things) applications.

Fully qualified BLE stacks for nRF52 are implemented in the S112/S113/S132 SoftDevices which can be freely downloaded. ISP1507 can then be used in Central, Peripheral or both roles for BLE and for both ends of other proprietary protocols. nRF52 platform also provides extensive software support for ANT applications with S212 SoftDevices and dual ANT/BLE stack S332 SoftDevices.

ISP1507-AX

NFC-A Tag for OOB pairing
M4F Floating point processor
512 kB Flash & 64 kB SRAM
30 GPIOs

Development Tools

In order to assist clients in developing their Bluetooth Smart solutions based on the ISP1507, Insight SIP offers Test Boards, proposed as stand alone PCBs, or included in Evaluation Boards which provide full hardware and software development environment. Used as stand alone solution, Test Boards also offer test points for all IOs and can be used in conjunction with Nordic Development kits and external J-Link programmers.

Evaluation Board

Contents

One Interface Board with integrated J-Link OB JTAG/SWD Emulator
One Test Board of chosen variant ISP1507-AX-TB
Cables

Ordering information

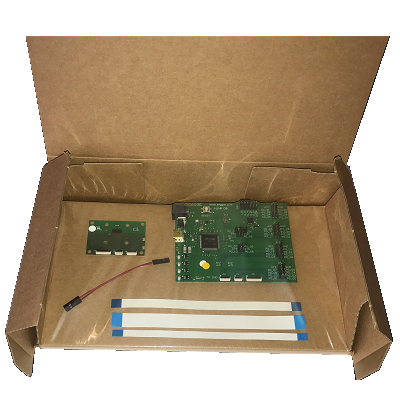

ISP1507-AX-EB

Test Board

Contents

One Test board of the chosen variant (see above)

Ordering information

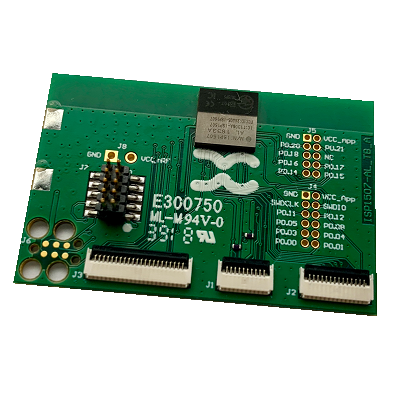

ISP1507-AX-TB

How to use Dev Tools

ISP1507-AL Unboxed! Insight SiP CTO Chris Barratt unboxes this low cost BLE RF module

BLE Application works directly out of the box. The kit includes interface board, module and cables. Connect all and plug the USB cable into PC. Download tools and SDK, then load ready-compiled application. Connect phone using nRF tool box application. Data is sent from module to phone in real time. It’s easy, it’s quick to create your own application, just add your sensors and firmware !
