Latest News

Bluetooth Low Energy, LoRa, UWB, Thread, Zigbee, ANT+, NB-IoT & Custom Modules

Insight SIP offers a range of module which are the smallest on the market, allowing our customers to add wireless technologies in the smallest spaces together with a tradeoff of price/performance that suits their needs. This has been achieved using our unique System-in-Package and Antenna-in-Package Technology. Our Module Product range with MCU and Antenna offers the best solution for high volume production with ultra-low power.

Explore our perfect solutions for Internet-of-Things (IoT) smart objects for domotic, fitness, healthcare, industrial, sport, wearable devices ...

WHO WE ARE

WHO WE ARE

Corporate presentation
Who are we ? What do we do ?
MODULE GENERALITIES

MODULE GENERALITIES

BLE, LoRA and UWB
Technologies & Expertise
PRODUCT & ROADMAP

PRODUCT & ROADMAP

Product range & future development
APPLICATION EXAMPLES

APPLICATION EXAMPLES

Some of our customer applications

Ready-to-use Bluetooth Low Energy (BLE), ANT+, Thread, Zigbee, LoRa
and UWB modules

Combo modules combining multiple standards

 Advanced embedded OEM modules: 3G/4G/LTE, Bluetooth, GPS/Glonass, Transfer/Jet, UWB, WiFi, proprietary radio standards, Milimeter-Waves, etc.

 Off-the-shelf modules or customized board designs

 Custom Modules to fit your applications demands

 Fully tested, licensed, qualified and guaranteed

Already designed and approved in more than 1000 products

Connect low power applications to smartphones and tablets

Extremely low-power consumption

Easy to design with

Enable the smallest & the thinnest products

System-in-package approach

Complete wireless engineering service on demand

Selection Table


Product Catalog

BLE Presentation        Powerpoint of BLE solutions
BLE Catalog                BLE product catalog




Smart ISP1500 Series  Coming Q1 2016

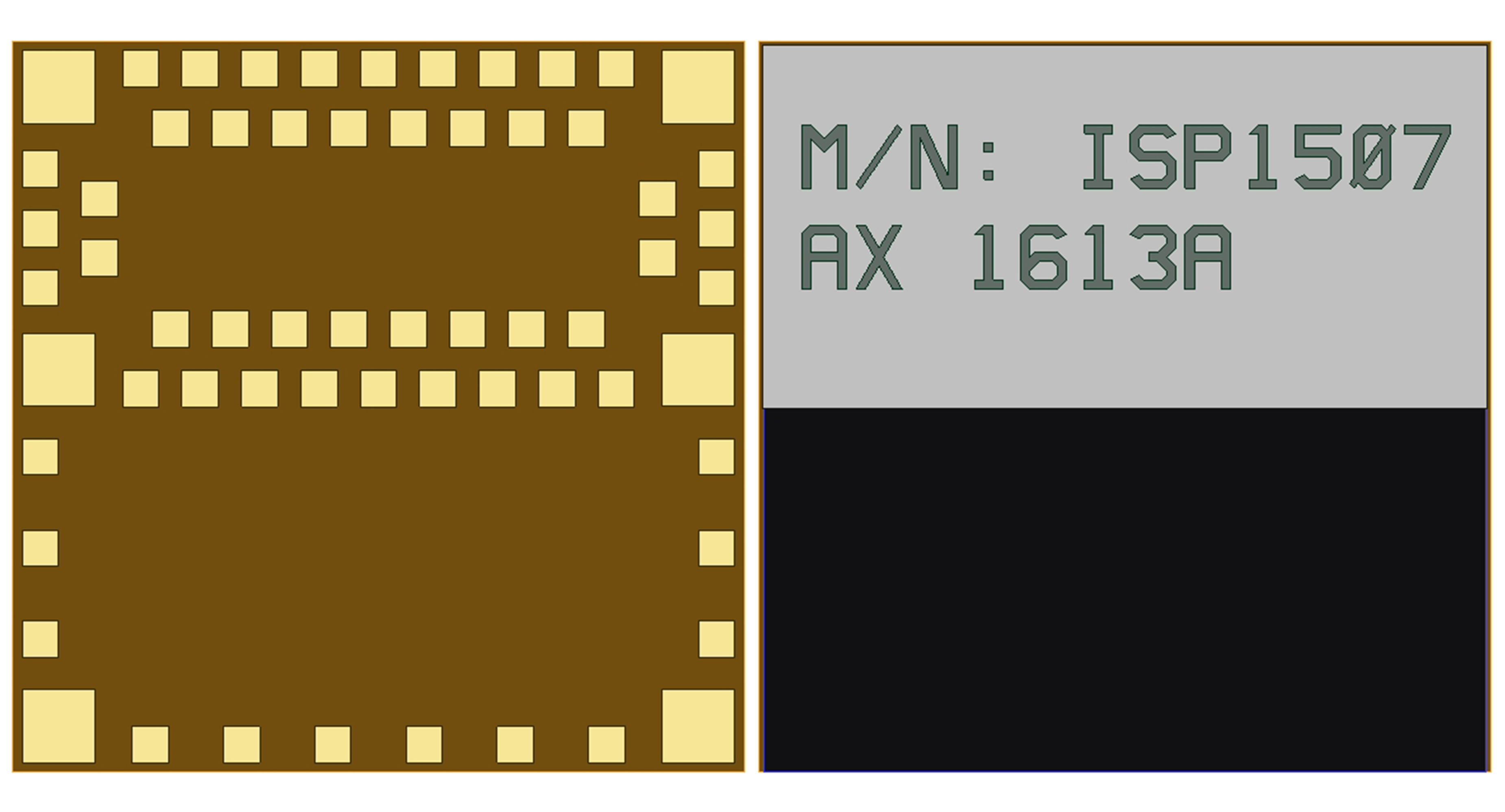

ISP1507                   High Performance Bluetooth+ANT+NFC Low Energy Module with MCU and Antenna  NEW!






Smart ISP1300 Series

Bluetooth Smart Modules

ISP130301                    High Performance Bluetooth & ANT Low Energy Module with MCU and Antenna



ISP130301-DK            Development kit for ISP130301



AN140101                     Use of ISP130301-DK



ISP1302                       Featured Bluetooth Low Energy Module with MCU and Antenna Order Your Samples Soon!


Smart Beacon

ISP140501                  BLE Beacon Detection Device
ISP140501-DK          Development kit for ISP140501
AN140801                   Use of ISP140501-DK



Multi Sensors Device

ISP131001                 BLE Accelero-Magnetometer, Temperature and Barometer Detection Sensor
AN140802                  Use of ISP131001 Multi Sensors




Smart ISP0900 Series

Sensors Device

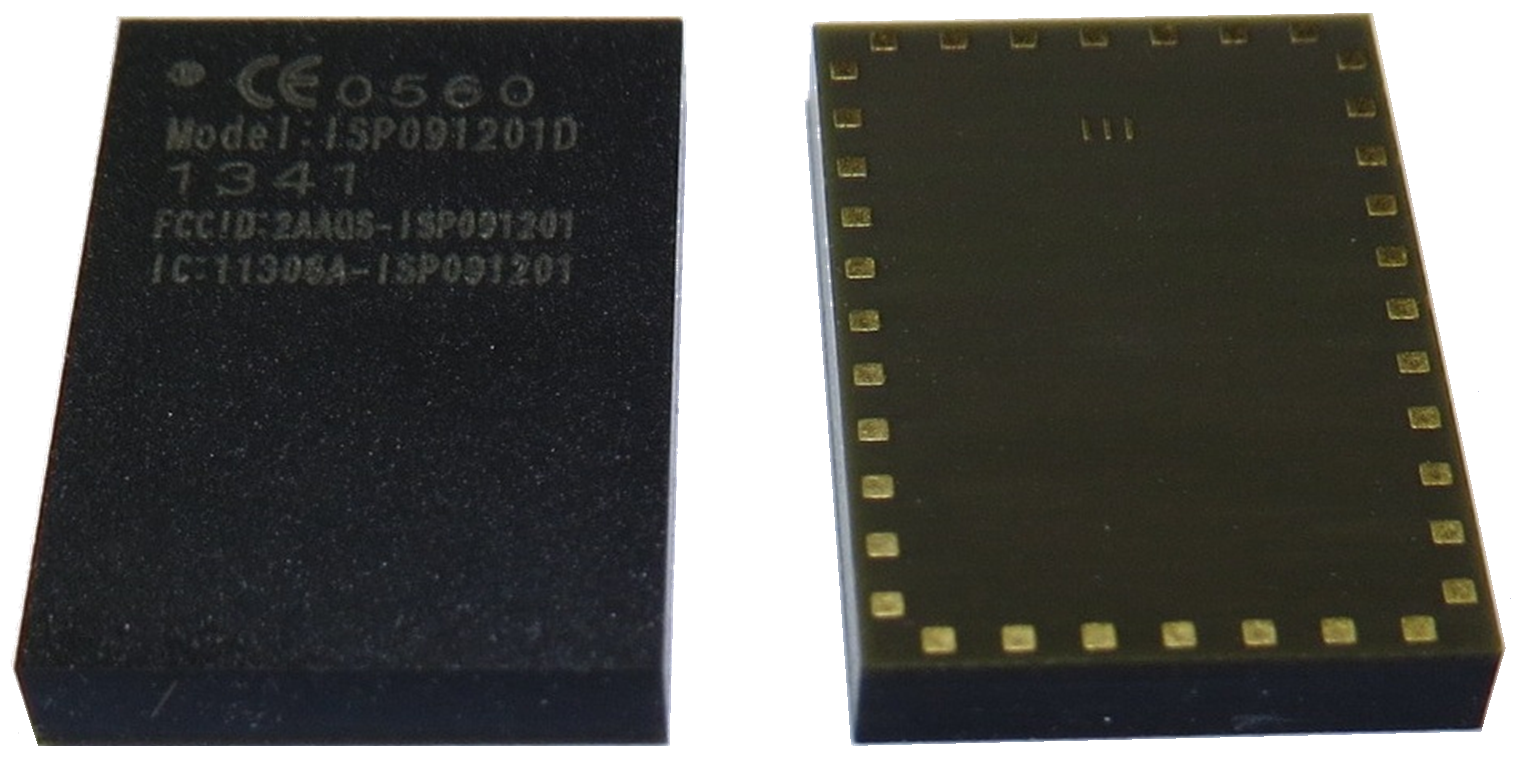

ISP091201              Bluetooth Low Energy Module with Integrated Antenna

ISP091201-DK        Development kit for ISP091201



AN120102               Use of ISP091201-DK



ISP120901               Orientation / Motion Detection Sensor

AN130402                Orientation / Motion Sensor Demonstration



ISP120909               Temperature Detection Sensor

AN130404                Temperature Sensor Demonstration



ISP120911               Light Detection Sensor
AN130405                Light Sensor Demonstration

Application Note

AN130501                Power optimization of BLE sensors


Design Service

BLE Custom Design   Design of BLE custom solutions












Bluetooth® Low Energy Modules
with integrated antenna

Insight SiP has designed a full range of BLE standard products including modules and sensors, as well as corresponding development kits. All these modules are perfectly suited for devices requiring low cost and low power wireless connectivity. They are designed in accordance with the Bluetooth Smart (low energy) specification contained within v4.2 of the overall Bluetooth specification.

Our modules are based on Bluetooth Low Energy chip from Nordic Semiconductor. Our latest module is as small as 8.0 x 8.0 x 1.0 mm. All modules integrate the antenna, the RF matching circuit, all decoupling and load capacitors plus the 16 MHz crystal oscillator. They work as a complete bi-directional transmitter/receiver. As our modules have several end applications, the antenna was designed to be compatible with several ground plane sizes such as USB dongle or cell phone. It illustrates Insight SiP’s expertise in RF & Front End miniaturization and antenna integration.

The modules are specifically designed for both PC and smart phone peripherals and ultra-low power applications such as sports and wellness sensors. Ultra low power consumption and advanced power management enables battery lifetimes up to several years on a coin cell battery.



ISP1500 Series




ISP1300 Series




ISP0900 Series

















  • Design based on nRF52
  • Ultra small packaging 8 x 8 x 1 mm
  • Combo module BLE and NFC
  • Cortex M4
  • 512 kB Flash and 64 k RAM
  • Half consumption versus ISP130301



  • Design based on nRF51
  • Available in 11 x 8 x 1.25 mm
  • Cortex M0
  • Up to 256 kB Flash and 32 kB RAM





  • Design based on nRF8001
  • Available in 12 x 8 x 1.5 mm
  • No MCU
  • No available memory







Download

Bluetooth Smart module presentation

Bluetooth Smart module catalog






Bluetooth® Low Energy Modules
with integrated antenna

Insight SiP has designed a full range of BLE standard products including modules and sensors, as well as corresponding development kits. All these modules are perfectly suited for devices requiring low cost and low power wireless connectivity. They are designed in accordance with the Bluetooth Smart (low energy) specification contained within v4.2 of the overall Bluetooth specification.

Our modules are based on Bluetooth Low Energy chip from Nordic Semiconductor. Our latest module is as small as 8.0 x 8.0 x 1.0 mm. All modules integrate the antenna, the RF matching circuit, all decoupling and load capacitors plus the 16 MHz crystal oscillator. They work as a complete bi-directional transmitter/receiver. As our modules have several end applications, the antenna was designed to be compatible with several ground plane sizes such as USB dongle or cell phone. It illustrates Insight SiP’s expertise in RF & Front End miniaturization and antenna integration.

The modules are specifically designed for both PC and smart phone peripherals and ultra-low power applications such as sports and wellness sensors. Ultra low power consumption and advanced power management enables battery lifetimes up to several years on a coin cell battery.
